Create a Sketchware app which links to a website and exits on its own

How to create in Sketchware an app which links to a website on clicking it's icon but the App doesn't open itself.

1. Download Sketchware, Open Sketchware App, go to my projects and start a new project.

2. Fill the App settings: package name, project name, App name, version, app icon.

3. Leave View area (main.xml) empty.

4. Go to Logic. Add a new intent component and name it 'web' (or anything else you want).

5. Now click on onCreate event. On activity onCreate add:
Intent web setAction ACTION_VIEW
Intent web setData http://yourweb.com (URL of website to be opened)
StartActivity web
Finish Activity



6. Save and Run the App.

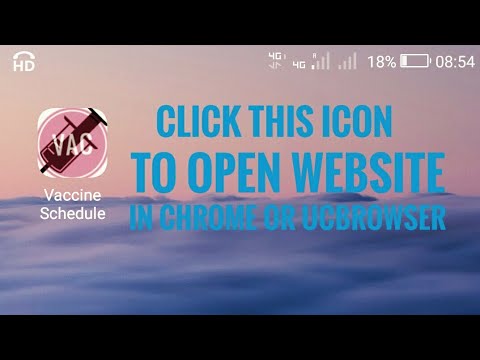

7. Your app will exit itself and open http://yourweb.com in default browser on your device.

8. End of tutorial.

Comments

  1. UnknownJune 20, 2017 at 1:39 AM

    How can I create books app.

    ReplyDelete
    Replies
    1. sanjeevJune 20, 2017 at 3:06 AM

      What kind of books. Do you want to write a book and then create an App which displays it page by page?

      Delete
    2. sanjeevAugust 4, 2017 at 6:01 AM

      https://youtu.be/QQTZCemJ758 This video may help you.

      Delete
    3. Win Htike (Myingyan)February 2, 2019 at 8:26 AM

      Hi, say me again

      Delete
  2. WinStudyAugust 3, 2017 at 1:47 PM

    hi, can i create a app through Sketchware which contain just two pages. on page 2 there are only webview. Page 1 contain 3 button for Facebook, Twitter and my blog. Now when click on the buttons, it redirect to the second page and load according to the buttons.
    can I do it by using any logic? Please help me.

    ReplyDelete
    Replies
    1. sanjeevAugust 4, 2017 at 5:59 AM

      Actually it can be done on a single page itself. But if you want to use two pages, then add file(shared preferences) component with same name on both the pages. On button click, set data of the file key to the url. And on next page set webview loadUrl​ to file get data key.

      Delete
    2. WinStudyAugust 4, 2017 at 9:19 AM

      please make a video tutorial relating this and alert me. It is so much needed, without which I can not make a app.

      Delete
    3. sanjeevAugust 4, 2017 at 11:23 AM

      Here is the complete thing you asked for: https://youtu.be/yXxpa07DW5s

      Delete
  3. archeriusJanuary 3, 2018 at 12:00 AM

    why cannot work for google.com (without http)?
    and not work if use IP address?

    ReplyDelete
    Replies
    1. sanjeevJanuary 3, 2018 at 1:52 AM

      Yes, you cannot load a url without http:// in webview.

      Delete
  4. ust hafizMay 3, 2018 at 10:44 AM

    How to make an app that open website in that app only?not with browser

    ReplyDelete
  5. UnknownMarch 27, 2019 at 2:06 AM

    how to fix this?
    thank you
    Webpage not available

    The webpage at intent://play.app.goo.gl/?link=https://play.google.com/store/apps/details?id%3Dthirdy.latest.kabayovpn#Intent;package=com.google.android.gms;scheme=https;S.browser_fallback_url=https://play.google.com/store/apps/details%3Fid%3Dthirdy.latest.kabayovpn;end; could not be loaded because:

    net::ERR_UNKNOWN_URL_SCHEME

    ReplyDelete
  6. TV Series UploaderMay 10, 2019 at 9:12 AM

    i will wait for your reply pls make blog or reply here the answer

    Question is i want to add my admob here i convert website to Mobile app using sketchware but i dont know how to add the initial ads or banner ads here pls make full tutorial i will wait for you thats my problem i did not see any tutorial about that only "convert website to app" i want to use sketchware beacause it friendly

    ReplyDelete
  7. Help meMay 12, 2019 at 8:57 AM

    please please give me ur facebook i need help please! please fast

    ReplyDelete
  8. SadhanaJune 23, 2019 at 10:53 PM

    Nice Post. Thanks for sharing the valuable information with us.
    PlayBox Online
    PlayBox Online
    PlayBox HD
    PlayBox Online
    PlayBox Online
    PlayBox Online

    ReplyDelete
  9. SathyaOctober 29, 2019 at 3:36 AM

    Thanks for sharing a useful information with us. If someone wants to know about Safety Softwares and Occupational health and Safety Software I think this is the right place for you.

    ReplyDelete
  10. Phani KumarNovember 10, 2020 at 12:39 AM

    Your Information is really good. Thanks for it.
    For free tv streaming apk click below.
    RedBox TV APK

    ReplyDelete
  11. JitMarch 2, 2021 at 11:20 PM

    How can i get "open with" features for my pdf reader application??

    When i want to open a pdf file...my pdf reader application in not there...to open a pdf using my application.

    Please help me to get the solutions 🙏🙏🙏

    ReplyDelete
  12. ኢስላማዊ አፕልኬሽኖች መፅሀፍቶች እና ኪታቦች ማውረጃ ዌብሳይትJuly 4, 2021 at 3:42 AM

    It is very helpful thanks a lot.

    ReplyDelete
  13. UnknownDecember 8, 2021 at 4:46 AM

    How can I design app for admob or startapp.

    ReplyDelete
  14. SantosMay 9, 2022 at 6:05 PM

    This comment has been removed by the author.

    ReplyDelete
  15. SantosMay 9, 2022 at 6:09 PM

    How can i create expiring date for my app, I want to create app that will expire in every 6 months, please how can I create it

    ReplyDelete
