Simple car racing android game in Sketchware


To create a simple car racing game in sketchware follow the steps given below.

1. Create a new project in Sketchware.

2. In VIEW area of main.xml add a TextView textview3 for displaying score of previous game, a TextView textview4 for displaying high score, and a Button button1 for starting game.

3. In MainActivity, add a Shared Preferences component sp:sp.

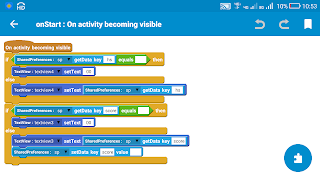

4. Add onStart event and put blocks to set the text of textview3 and textview4.

5. Create a new page page2.xml.

6. On button1 click use intent to move to page2.

7. On page2.xml add a LinearV linear1 with padding 0 and width and height MATCH_PARENT.

8. In Page2Activity, add a Shared Preferences component sp:sp.

9. Create a number variable highscore.

10. In onCreate event of Page2Activity, use blocks to set the value of number variable highscore, and use codes to create a new GameView and add it to linear1, as shown in image below.

The code used in the add source directly block is:
GameView bcv = new GameView(this);
linear1.addView(bcv);

11. Create a more block extra.

12. In the more block extra, use an add source directly block and put codes to create a new View class GameView.
}

public class GameView extends View{
private Paint myPaint;
private int speed=1;
private int time = 0;
private int score = 0;
private int myCarPosition = 0;
private ArrayList<HashMap<String, Object>> otherCars = new ArrayList<>();

int viewWidth = 0;
int viewHeight = 0;

public GameView(Context context){
super(context);
myPaint = new Paint();
}

@Override
protected void onDraw(Canvas canvas) {
viewWidth = this.getMeasuredWidth();
viewHeight = this.getMeasuredHeight();

if (time%700 < 6 + 2*speed){
HashMap<String, Object> map = new HashMap<>();
map.put("lane", getRandom(0,2));
map.put("startTime", time);
otherCars.add(map);
}

time = time + 6 + 2*speed;

int carWidth = viewWidth/5;
int carHeight = carWidth+10;

myPaint.setStyle(android.graphics.Paint.Style.FILL);

myPaint.setColor(Color.RED);
canvas.drawRect((myCarPosition*viewWidth/3) + viewWidth/15, viewHeight - 2 -carHeight, (myCarPosition*viewWidth/3) + (viewWidth/15) + carWidth, viewHeight-2, myPaint);

myPaint.setColor(Color.GREEN);

for (int i = 0; i<otherCars.size(); i++){
int carX = ((int)otherCars.get(i).get("lane")*viewWidth/3) + viewWidth/15;
int carY = time - (int)otherCars.get(i).get("startTime");

canvas.drawRect(carX, carY-carHeight, carX + carWidth, carY, myPaint);

if ((int)otherCars.get(i).get("lane") == myCarPosition){
if (carY > viewHeight - 2 - carHeight && carY < viewHeight - 2){
sp.edit().putString("hs", String.valueOf(highscore)).commit();
sp.edit().putString("score", String.valueOf(score)).commit();
finish();
}}

if (carY > viewHeight + carHeight){
otherCars.remove(i);
score++;
speed = 1 + Math.abs(score/10);
if (score > highscore){
highscore = score;
}
}
}

myPaint.setColor(Color.BLACK);
myPaint.setTextSize(40);
canvas.drawText("Score: " + String.valueOf(score), 80f, 80f, myPaint);
canvas.drawText("Speed: " + String.valueOf(speed), 380f, 80f, myPaint);

invalidate();
}

@Override
public boolean onTouchEvent(MotionEvent event) {
switch(event.getAction()) {
case MotionEvent.ACTION_DOWN:
float x1 = event.getX();
if ( x1<viewWidth/2){
if (myCarPosition>0){
myCarPosition--;
}
}
if ( x1>viewWidth/2){
if (myCarPosition<2){
myCarPosition++;
}
}
invalidate();
break;
case MotionEvent.ACTION_UP:
break;
}
return true;

}

13. Save and Run the project.

Video tutorial:


To replace the Rectangles by images of cars:
* Add images of cars using image manager. Example car_blue, and car_yellow.
* Replace the code in More Block with following code:

}

public class GameView extends View{
private Paint myPaint;
private int speed=1;
private int time = 0;
private int score = 0;
private int myCarPosition = 0;
private ArrayList<HashMap<String, Object>> otherCars = new ArrayList<>();

int viewWidth = 0;
int viewHeight = 0;

public GameView(Context context){
super(context);
myPaint = new Paint();
}

@Override
protected void onDraw(Canvas canvas) {
viewWidth = this.getMeasuredWidth();
viewHeight = this.getMeasuredHeight();

if (time%700 < 10 + speed){
HashMap<String, Object> map = new HashMap<>();
map.put("lane", getRandom(0,2));
map.put("startTime", time);
otherCars.add(map);
}

time = time + 10 + speed;

int carWidth = viewWidth/5;
int carHeight = carWidth+10;

myPaint.setStyle(android.graphics.Paint.Style.FILL);

android.graphics.drawable.Drawable d = getResources().getDrawable(R.drawable.car_blue, null);
d.setBounds((myCarPosition*viewWidth/3) + viewWidth/15 + 25, viewHeight - 2 -carHeight, (myCarPosition*viewWidth/3) + (viewWidth/15) + carWidth-25, viewHeight-2);
d.draw(canvas);

myPaint.setColor(Color.GREEN);

for (int i = 0; i<otherCars.size(); i++){
int carX = ((int)otherCars.get(i).get("lane")*viewWidth/3) + viewWidth/15;
int carY = time - (int)otherCars.get(i).get("startTime");

android.graphics.drawable.Drawable d2 = getResources().getDrawable(R.drawable.car_yellow, null);
d2.setBounds(carX+25, carY-carHeight, carX + carWidth-25, carY);
d2.draw(canvas);

if ((int)otherCars.get(i).get("lane") == myCarPosition){
if (carY > viewHeight - 2 - carHeight && carY < viewHeight - 2){
sp.edit().putString("hs", String.valueOf((int)highscore)).commit();
sp.edit().putString("score", String.valueOf(score)).commit();
finish();
}}

if (carY > viewHeight + carHeight){
otherCars.remove(i);
score++;
speed = 1 + Math.abs(score/8);
if (score > highscore){
highscore = score;
}
}
}

myPaint.setColor(Color.WHITE);
myPaint.setTextSize(40);
canvas.drawText("Score: " + String.valueOf(score), 80f, 80f, myPaint);
canvas.drawText("Speed: " + String.valueOf(speed), 380f, 80f, myPaint);

invalidate();
}

@Override
public boolean onTouchEvent(MotionEvent event) {
switch(event.getAction()) {
case MotionEvent.ACTION_DOWN:
float x1 = event.getX();
if ( x1<viewWidth/2){
if (myCarPosition>0){
myCarPosition--;
}
}
if ( x1>viewWidth/2){
if (myCarPosition<2){
myCarPosition++;
}
}
invalidate();
break;
case MotionEvent.ACTION_UP:
break;
}
return true;


}
